NG-62M Full automatic mattress roll compressor packing machine
| 1.Have two function :Press ,and roll packing,this machine only one diameter 2.Have screen from start to end to protect worker safe 3.Pressure 100ton 4.Machine can compress:Foam,foam mattress ,spring machine ,pockect spring ,latex and so on. 5.Automatic sealing and vacuum and sending 6.Had better used 0.09mm thickness film to compress 7.All full automatic ,one worker to control ,it seal three size .(it can help you to reduce one worker cost and the people making bag cost) 8.Have CE certificates 9.Voltage can according customer requement to correct it |
Description
Full automatic mattress roll compressor packing machine, from the entrance to the exit from the conveyor belt automatic and automatic vacuum, automatic sealing, automatic wrapping function, the packing efficiency for 40-50 seconds / piece, the training cycle is short, easy to transfer the production staff, can connect all kinds of packaging production line, for the factory to save labor cost, saving time labor saving. And saves the storage space and transportation cost, PLC control system, can be translated into various languages, provide customer service.
Full automatic mattress roll compressor packing machine Discription
| Size of pressure plate:2300*2200mm |
| Working pressure:100T |
| Distance of openning gear:500m |
| Mattress size:2000mm*2000mm |
| Packaging efficiency:1min/pcs |
| Exit diameter:＃32、＃34、＃37 |
| Roll efficiency:30s/pcs |
| Rolling power:8.15kw |
| Extermal dimension: 9280*3200*3500mm |
| Voltage:380V/50HZ |
| Net weight:10000kg |
Company information
Naigu factory is a high tech enterprise in Guangdong Province. We are also the China Research Center of drying and granulating with the award of Chinese Enterprise of Honoring Contracts and Credit of Grade AAA. As Deputy Director-General of China Association for Drying Equipment, Director of China Association for Pharmaceutical Equipment and China Fixed Point Production Enterprise for Chemical Equipment Company, we initiated lots of drying policies for China drying industry.
Quick Details
Type:Other Automatic Grade:Automatic
Condition:New Application:Machinery & Hardware
Packaging Type:Film Packaging Material:Plastic
Driven Type:Hydraulic Voltage:380V/50HZ
Power:24.5KW Place of Origin:Guangdong, China (Mainland)
Brand Name:NAIGU Model Number:NG-62M
Weight:8000kg Dimension(L*W*H):8400mm*3200mm*3400mm Certification:CE ISO
After-sales Service Provided:Engineers available to service machinery overseas
Name:NG-61M Full Automatic compressor machine Usage:Mattress Compressing
Packing material:Plastic Film or wooden Packing speed:1pcx/40-50sec
Warranty:1 Year Color:white and blue and yellow
Machine type:Mattress compressor machine Total weight:8000KG
Total power:24.5KW

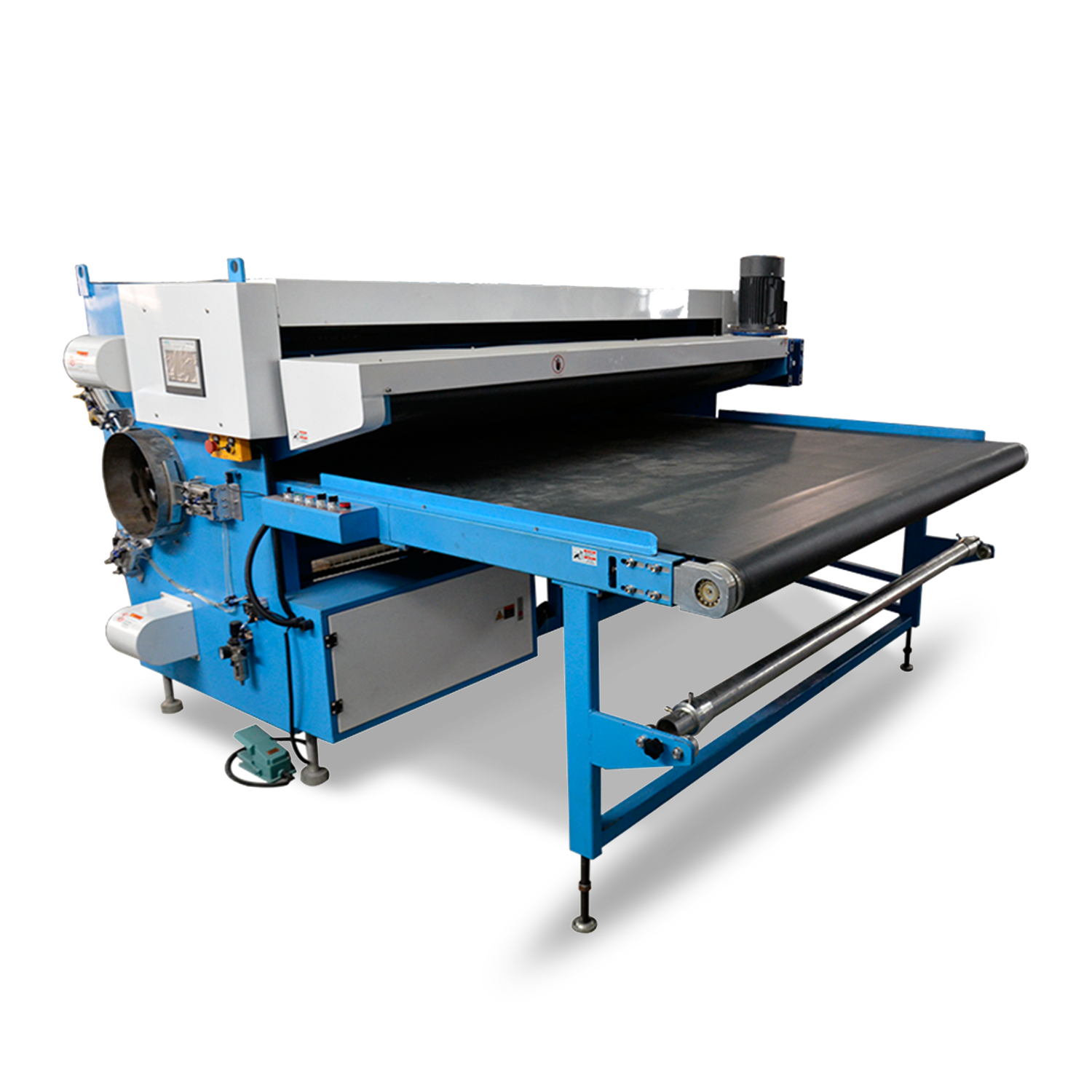

Full automatic mattress roll compressor packing machine Pictures
Our service
Naigu factory has been for this field in many years,our customers are in all kinds country.pls trust us ,believed your choose. We will try our best to give u the best service and best quality goods.Waiting for your inquiry.
