NAIGU automatic mattress surrounding edge machine
Auto-lifting table, hand-controlled tilting of sewing head.
Variable speed for moving of carriage and sewing, auto-slowdown at corners.
Straight, enen and attractive seam.
Stainless steel table top.
Equipped with level-adjusting device.
Low noise, small vibration, stable performance.
Description

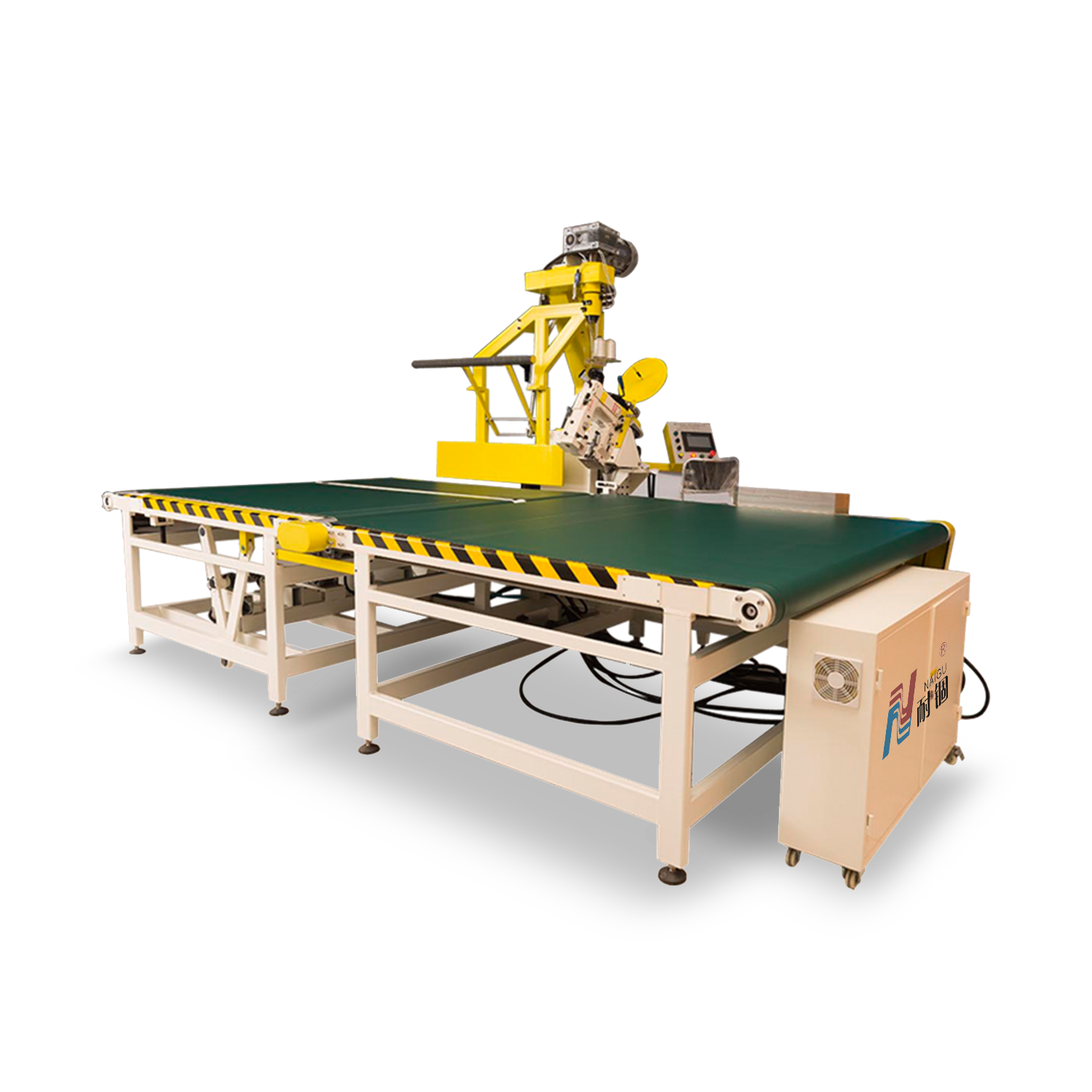

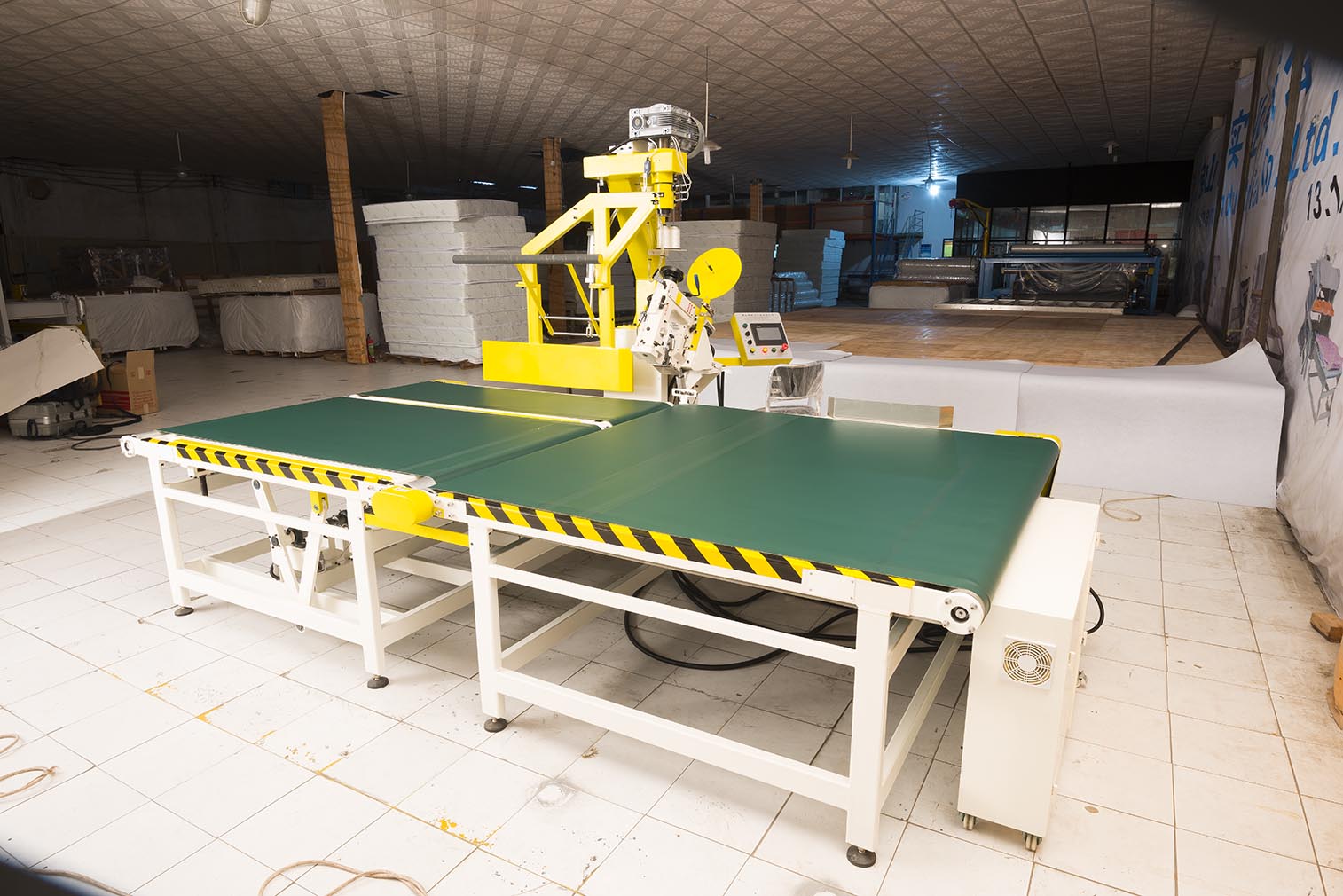

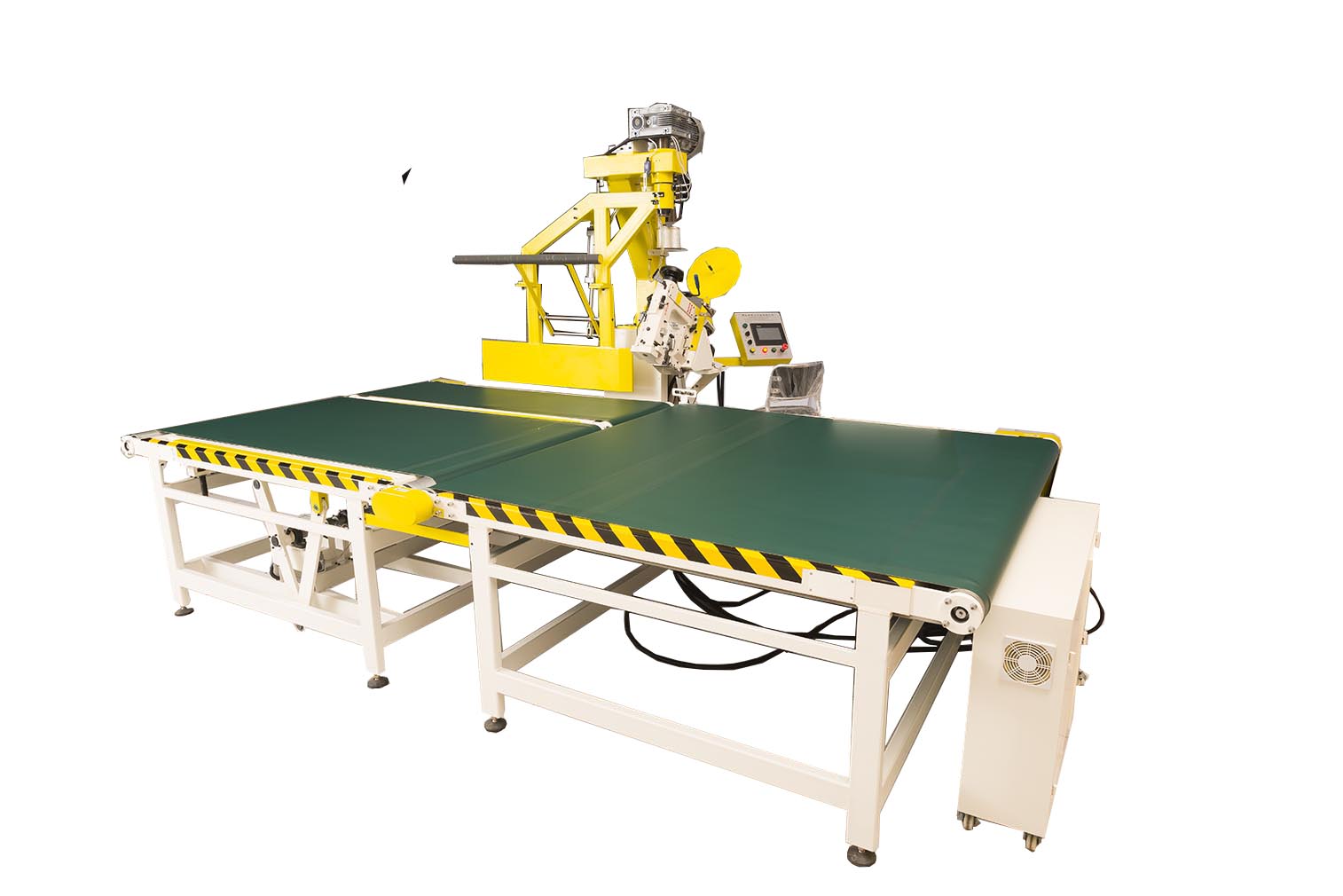

NAIGU automatic mattress surrounding edge machine
This China NAIGU automatic mattress surrounding edge machine is mainly used for mattress tape sewing. The main advance is sewing head need not moving, but the lifting machine can turn angles to sew mattress of different thickness. The automatic mattress tape edge sewing machine is equipped with singer-300U chain sewing head and microcomputer controlling system imported from Japan. When producing, the conveyer can move forward, backward, turning 90 degrees or 180 degrees to sew the whole mattress automatically. It may change walking carriage’s turning speed automatically , which make mattress sweed turn-flange more beautiful
| Thickness of mattress | 50-450 mm |
| Table lifting range | 0-450 mm |
| Air supply | 0.7-1.0 Mpa |
| Table size | 2000*3950*900 mm |
| Total power | 6 KW |
| Weight | 1500 kg |
| Power supply | 3-phrase 380v 50Hz |
| Efficiency | 15-18 units/h |
Naigu factory is a high tech enterprise in Guangdong Province. NaiGu is a leading manufacturer and exporter in plastic film and matress machine products like automatic mattress tape edge machine . It is famous for its high quality products and service, and won good reputation among its customers. Our factory export all kind of mattress packing machine，mattress making machine,furniture packing film, mattress bags, compressing bags，mattress pvc film so on.
