NG-04P Mattress secondary compress packaging machine

NG-04P Mattress secondary compress packaging machine

1.Save transportation expenses

2.Excellent properties

3.Long using life

4.High efficiency

5.Easy to operate

6.Can prevent the air leakage of compression bag resulting in mattress rebount and product not be unloaded.

Description

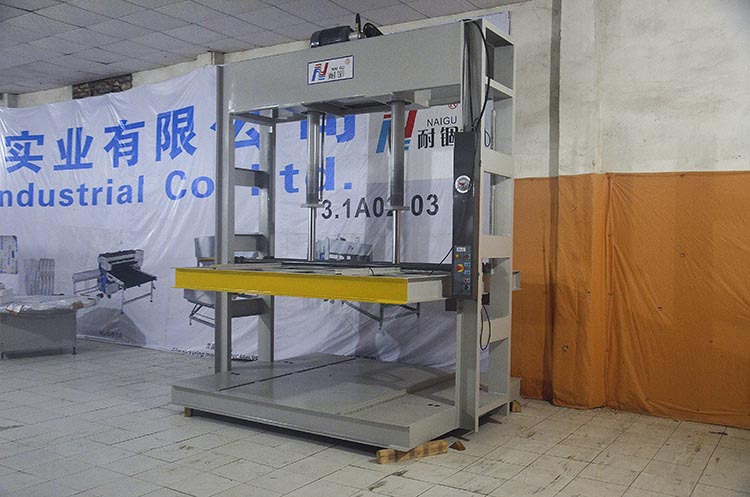

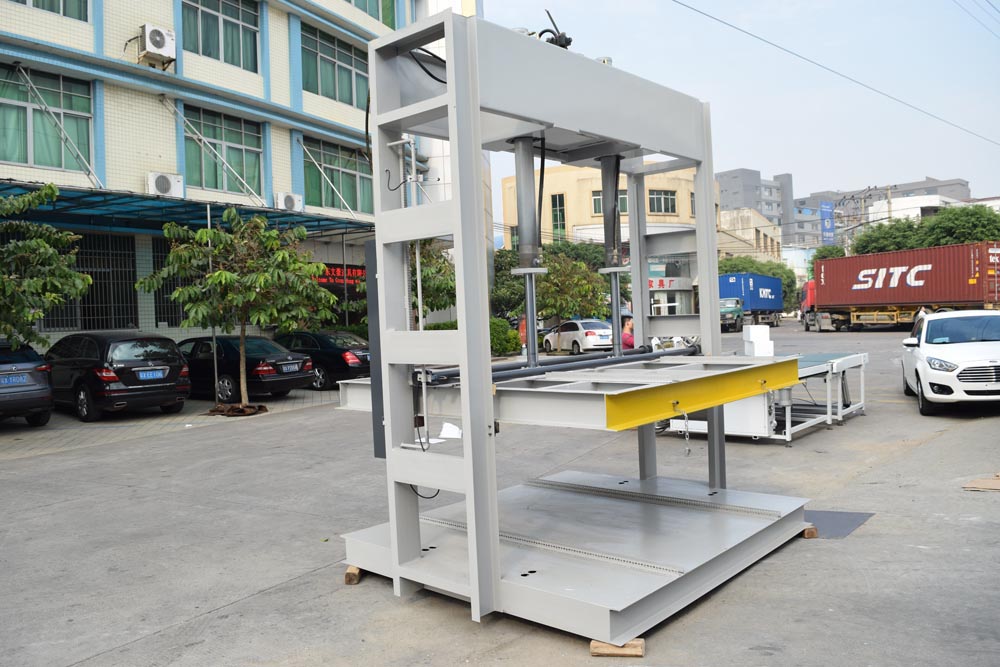

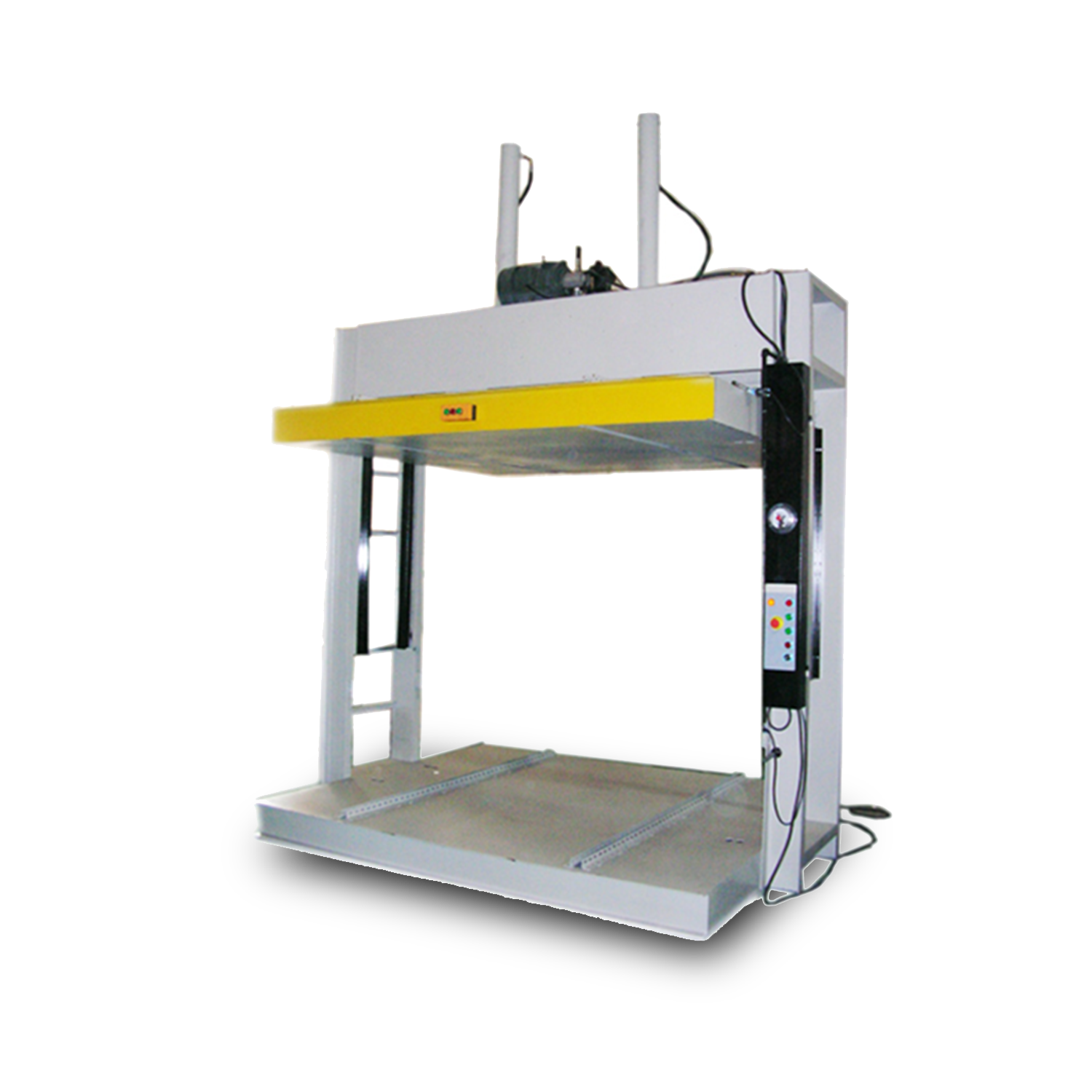

NG-04P Mattress secondary compress packaging machine



Information of product

The mechanical pressure plate size can be customized according to customer requirements,and also can be dis assembled into five parts,can save the volume of the cabinet.

The advantage of the secondary compressor machine lies in :after  the secondary compressor. it makes the mattress smaller volume in transportation and storage, and the shape-protective wooden frame can effectively prevent the air leakage of compression bag resulting in mattress rebound and product not able to be unloaded.

1.Taiwan hydraulic pressure original

2.Use Japan”NOK”oil seal

3.Taiwan oil pump provides stable and reliable discharge

4.Make the up-and-down movement stable

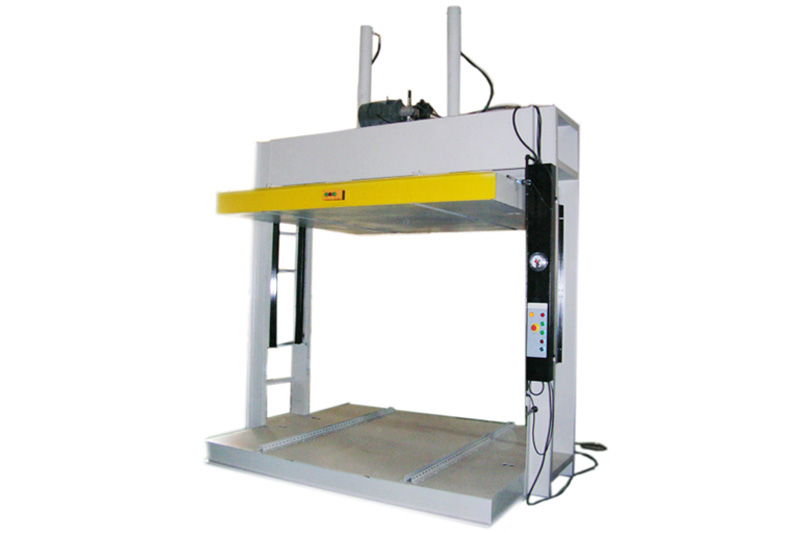

mattress compression1

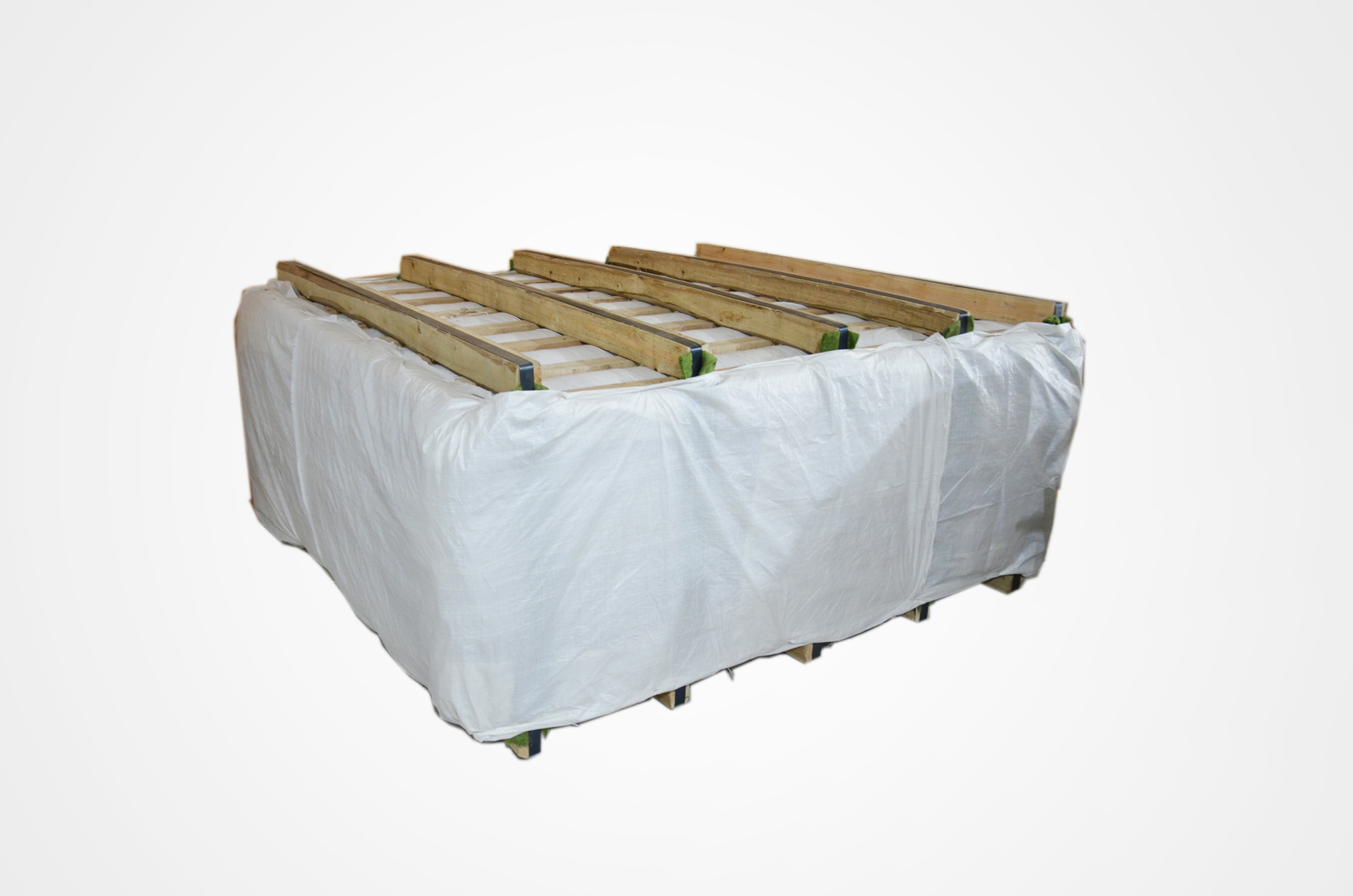

NG-04P (7)







Descriptions of product

Model: NG-04P

Voltage:380 V/50 Hz

Max.size of mattress:2100*2200 mm

Workable size:2200*2400 mm

Power of oil pump:5.5 kw

Max.lifting distance:2200 mm

Min. costing height: 900 mm

Over-tall dimension:2760*2200*3500 mm

Weight:3000 kg

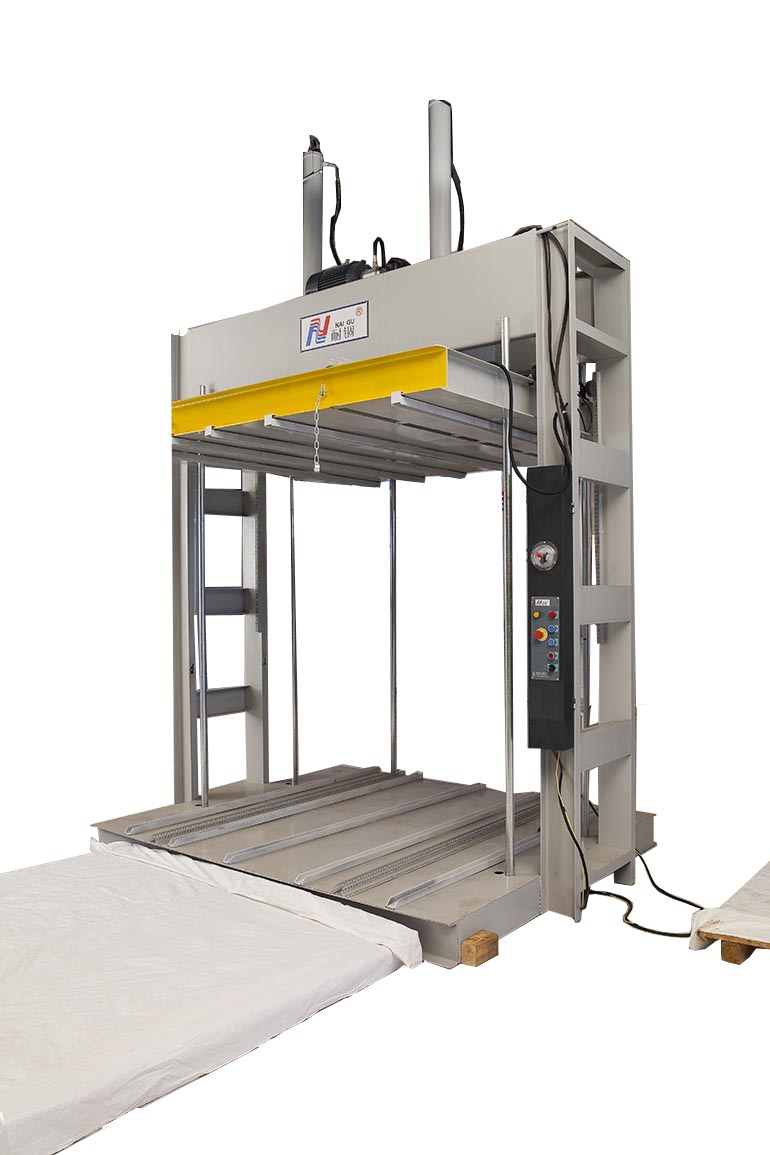

NG-04P (9)



Advantage of product

1.Save transportation expenses

2.Excellent properties

3.Long using life

4.High efficiency

5.Easy to operate

6.Can prevent the air leakage of compression bag resulting in mattress rebount and product not be unloaded.

7.Easy to be disassembly maintenance and transportation

8.Contrast with compressor ,the secondary compressor it makes the mattress smaller volume in transportation and storage.





About company

NaiGu blowing film packaging materials (machinery) factory  is located in “China furniture business capital” — Longjiang Town, Shunde District, Foshan City. Chi Li is a company which set design, production, mattress machinery and mattress compression equipment vacuum compressed bag, comprehensive enterprise mattress packing bags and various types of furniture and mattress compression packaging machine. The company covering an area of 5000 square meters, It has bags advanced production equipment professional technical personnel and modern management team, though nearly five years of efforts and development, Naigu has become the most reputable and strong packaging material enterprise in many factories.

IMG_9721

Thank you for your visiting!

If you are interested in our products, welcomed to send me inquiry, we would reply you all email and quotation within 24 hours.Welcome home or oversea customers to cooperate with us.
